Wi-Fi Setup Procedure

This section describes the initial Wi-Fi setup procedure.

What to prepare

• Smart mat (main unit)
• Specified browser (Chrome, Safari, Firefox) and Wi-Fi enabled device (PC, smartphone)
• SSID and password for the Wi-Fi router to be used for the SmartMat

Procedure

*This procedure should be completed within 5 minutes after the lamp blinks.
  If more than 5 minutes have elapsed, start over from step (1).

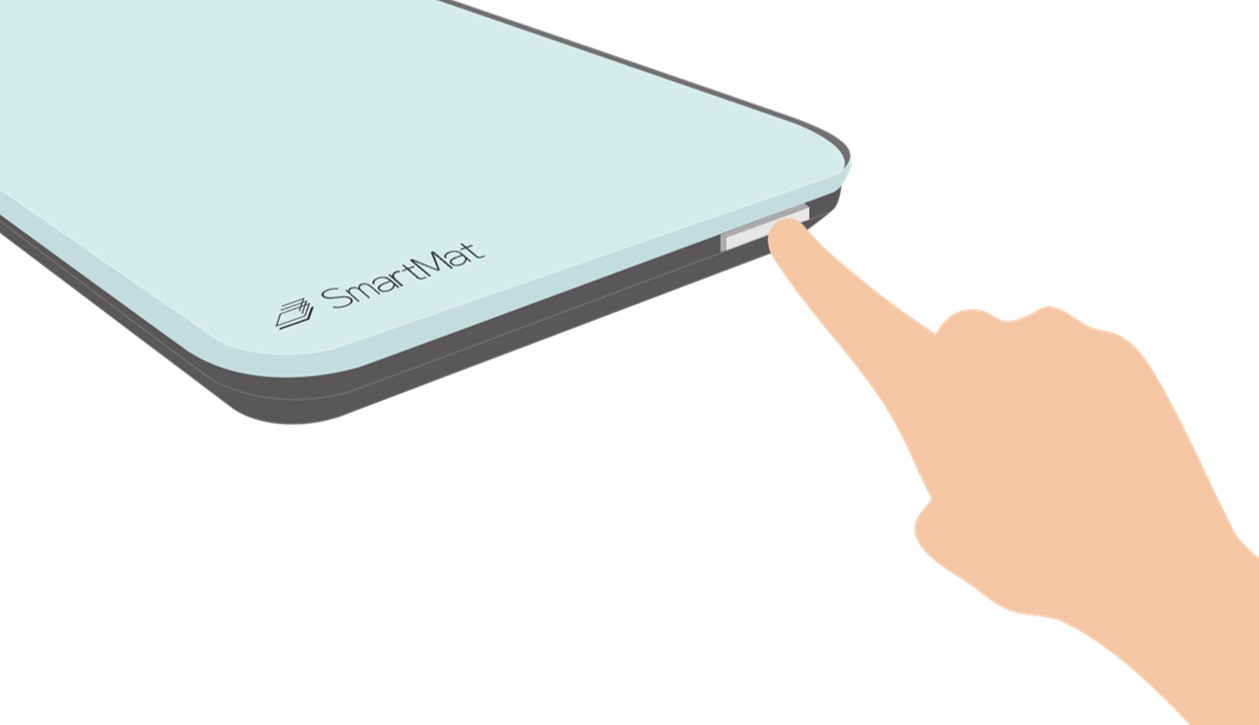

1. Press and hold the button on the smart mat until the lamp flashes (about 7 seconds).

While it is blinking, the smart mat will transmit Wi-Fi signals.

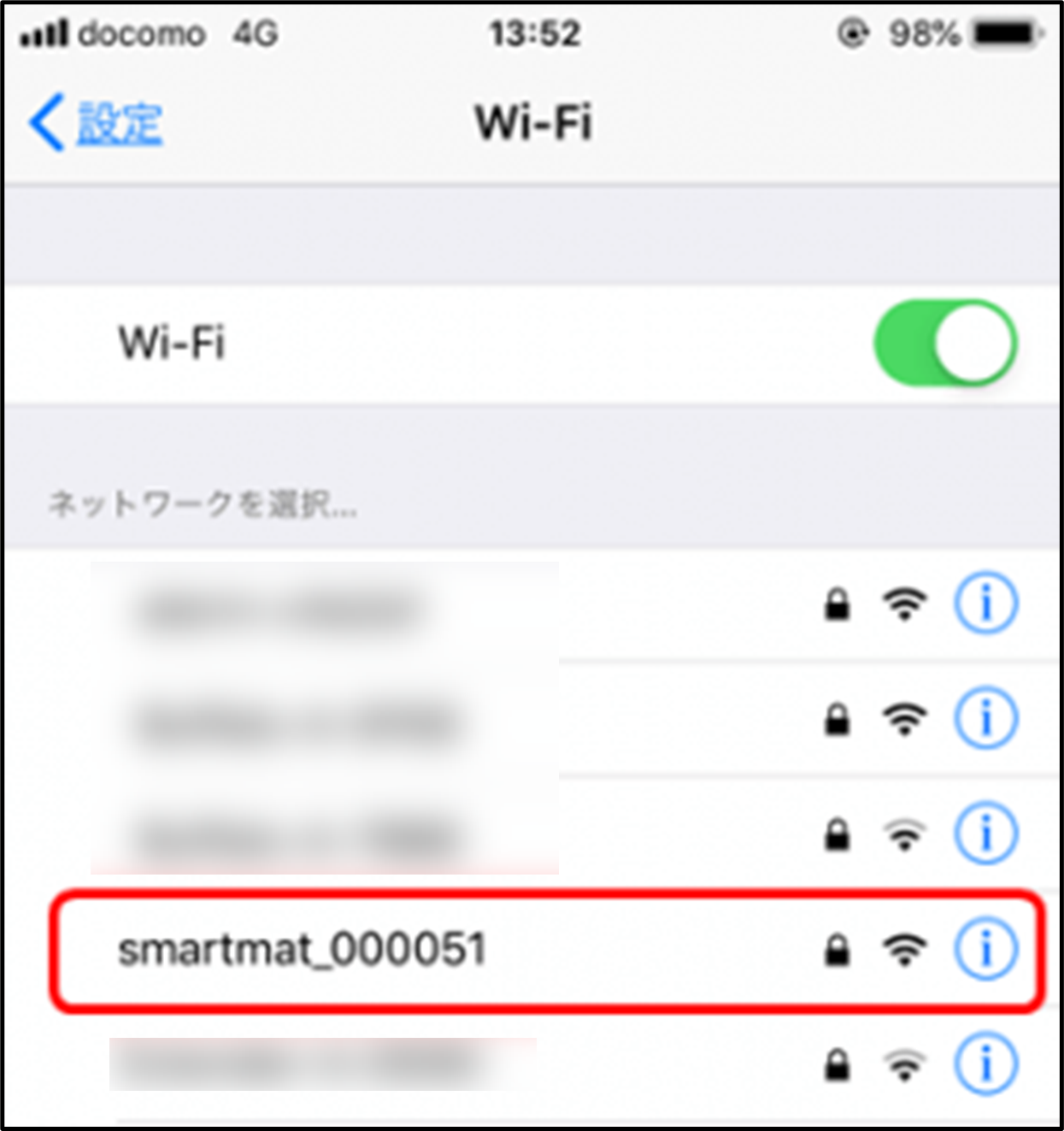

2. Put your device (PC/smartphone) in Airplane mode and connect to the Wi-Fi called "Smartmat_XXXXXX (6 digits)".

SSID: Smartmat_XXXXXXXX (last 6 digits of serial number)
PW：smartmat
*If the message "Cannot connect to the Internet" is displayed, please ignore it.

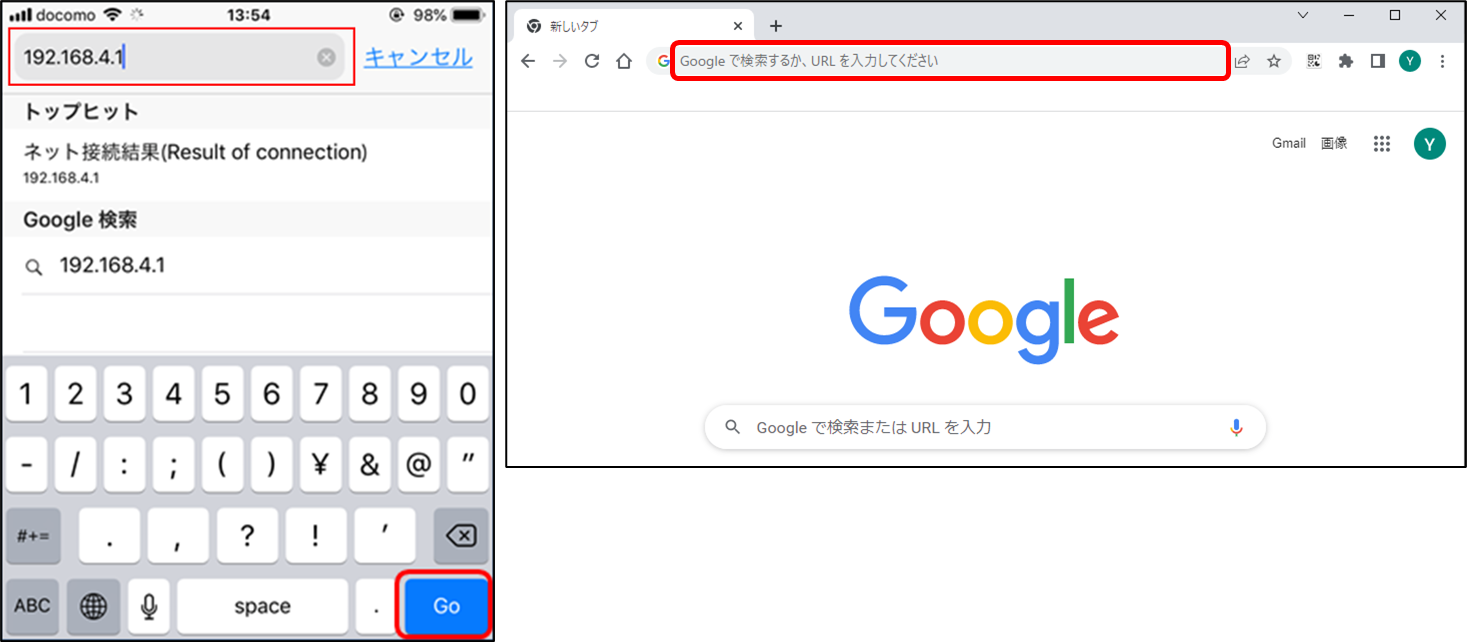

3. Open a browser and enter "192.168.4.1" directly in the address bar.

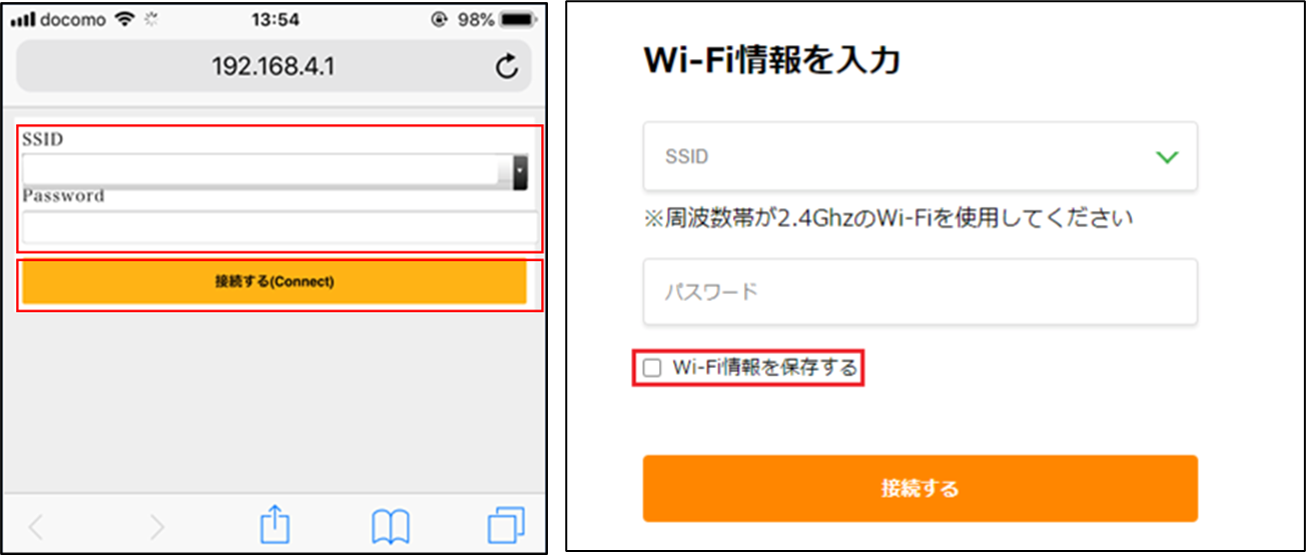

The Wi-Fi SSID and PW entry screen will appear.

4. Enter the SSID and PW of the Wi-Fi router to be used for the SmartMat, and click "Connect.

The following screen will appear only if the model number is W34, W44, or W54. Select "Save Wi-Fi information" to display the SSID on the management screen.

5. When the SmartMat lamp turns green and then turns off, the Wi-Fi setup process is complete.

*For confirmation, press the button once again to see if the light turns green at the end.

If you wish to continue setting up Wi-Fi for the second and subsequent mats

Please follow this procedure while the first mat has been set up.

1. Press and hold the SmartMat button until the lamp flashes (about 7 seconds).

While the lamp is blinking, the SmartMat will transmit Wi-Fi signals.
*This procedure must be completed within 5 minutes after the lamp flashes.
If more than 5 minutes have elapsed, start over from step (1).

2. Connect to SmartMat Wi-Fi with the terminal

SSID: Smartmat_XXXXXXXX (last 6 digits of serial number)
PW：smartmat
*If the message "Unable to connect to the Internet" is displayed, please ignore it.

3. Open the browser page used in the configuration of the first router and click the "Update" button.

The SSID and password of the router configured for the first unit will be set in SmartMat.

4. When the SmartMat light turns green and goes off, the Wi-Fi setup process is complete.
